Loader and 54″ Mower

Unit details

Mahindra 1120 HST w/Loader and 54″ Mower

The 1100 series is the toughest, friendliest, and smartest tractors in the world. We challenge all weekend warriors to test their mettle. Novices will smile at an intuitive and informative cockpit. Phone app lovers will be pumped by its intelligent OJA software.

Features may include:

EFFORTLESS CONTROLS AT YOUR FINGERTIPS

Electronic PTO engagement for your mid and rear implements is ideal for those with arthritis and is designed to prevent accidental activation, improving operator safety.

UNMATCHED RIDE QUALITY

Try sitting on a tractor all day, and then you’ll see why the 1100 comes with power steering standard and mComfort — the comfiest seat in its class. It offers outstanding support, featuring a superior form-fitting seat cushion and foldable armrests.

BEST-IN-CLASS LOADER TRACTOR

Our hydrostatic drive system (HST) eliminates gear shifting by safely engaging color-coded forward or reverse pedals. Combining HST with a super smooth joystick for loader-control makes fast and

WON’T STOP UNTIL YOU STOP.

Using projector-style headlights for best-in-class output, we offer bright, white lighting for after-dark chores.

SPECS

ENGINE
Engine type Naturally Aspirated, Indirect Injection, Water Cooled Diesel
Engine HP [kW] @ RPM 20.1 (15) @ 2900
Displacement [in3 (cc)] 67.2 (1102)
Number of cylinders 3
Fuel tank [Gal (L)] 6.6 (25)
Bore & stroke [in] Bore : 3, Stroke : 3.2
Cylinders Naturally Aspirated, Indirect Injection, Water Cooled Diesel

DRIVE TRAIN
Transmission type HST – 2 range
Number of speeds Infinite
Clutch N/A
Max speed (mph) 7.3
Brakes Single pedal

PTO
PTO type Independent Wet Clutch
Rear PTO RPM 540 @ 2837
Mid PTO RPM 2500 @ 2837
PTO HP (kW) 14 (10.4)

HYDRAULICS
Type Open center with Position Control
Maximum total flow [GPM (L/min)] 7.6 (28.7)
Total pump output, main (GPM) 7.4
Total pump output, steering (GPM) 3.8

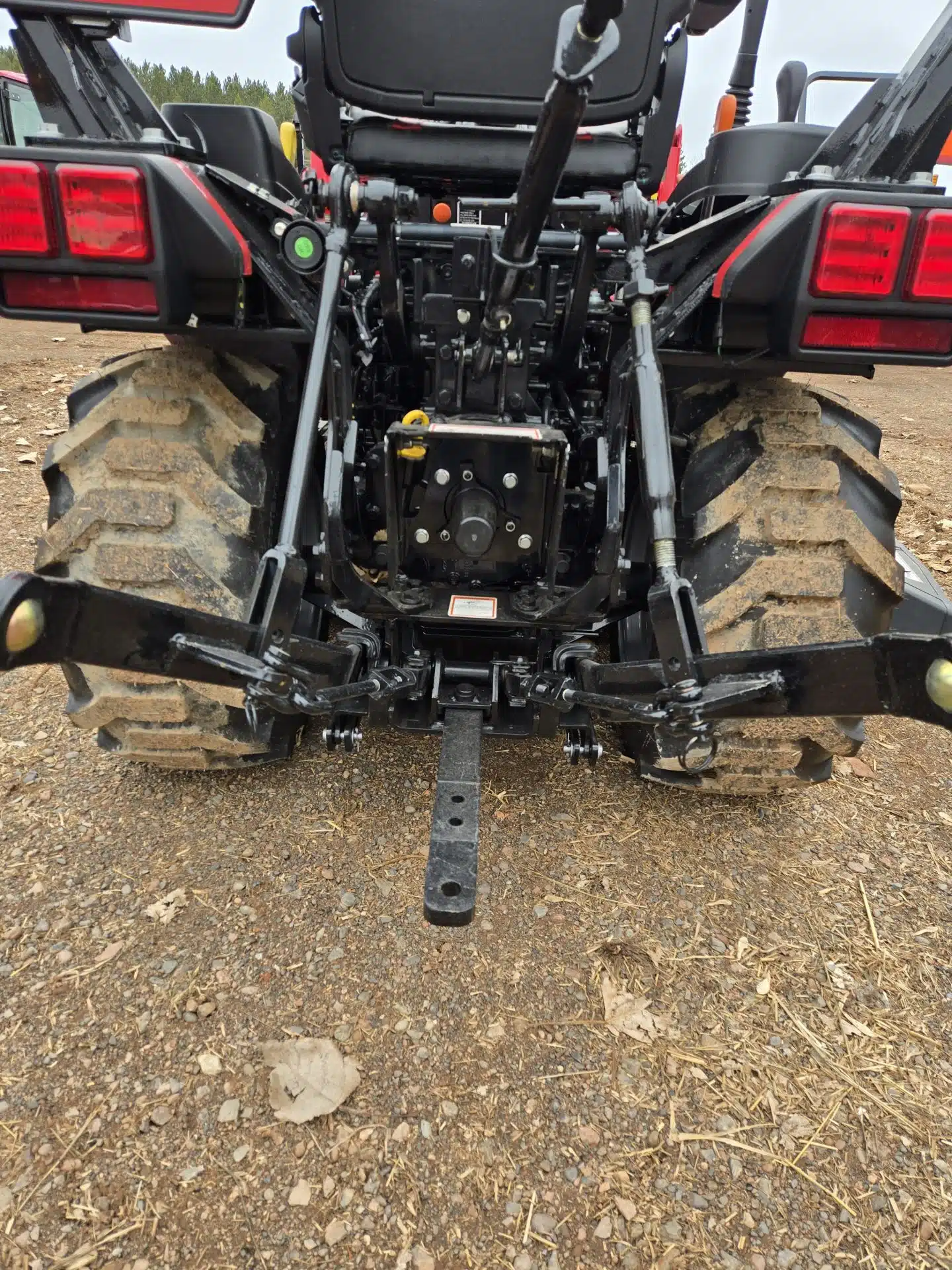

3-Point hitch Cat I
3- Point hitch lift capacity @24″ aft [lb (kg)] 771 (350)

ELECTRICAL
Battery 12.6 V, 650 CCA
Alternator 12V, 55A

DIMENSIONS & WEIGHT
Overall length [in (mm)] 100.4 (2550)
Wheelbase [in (mm)] 55.1 (1400)
Turning radius [ft (m)] 7.2 (2.2)
Overall width [in (mm)] 46.3 (1177)
Overall height [in (mm)] OS 86.6 (2200) Cab 80.5 (2044)
Minimum ground clearance [in (mm)] 6.7 (169)
Weight [lb (kg)] 1620 (735)

TIRES
IND [Front/Rear] 18×8.5-10 / 26×12-12

LOADER
Model number L11
Max lift height (in) 73.2
Loader lift capacity [lb (kg)] 794 (360)
Digging depth (in) 3.14

Loader

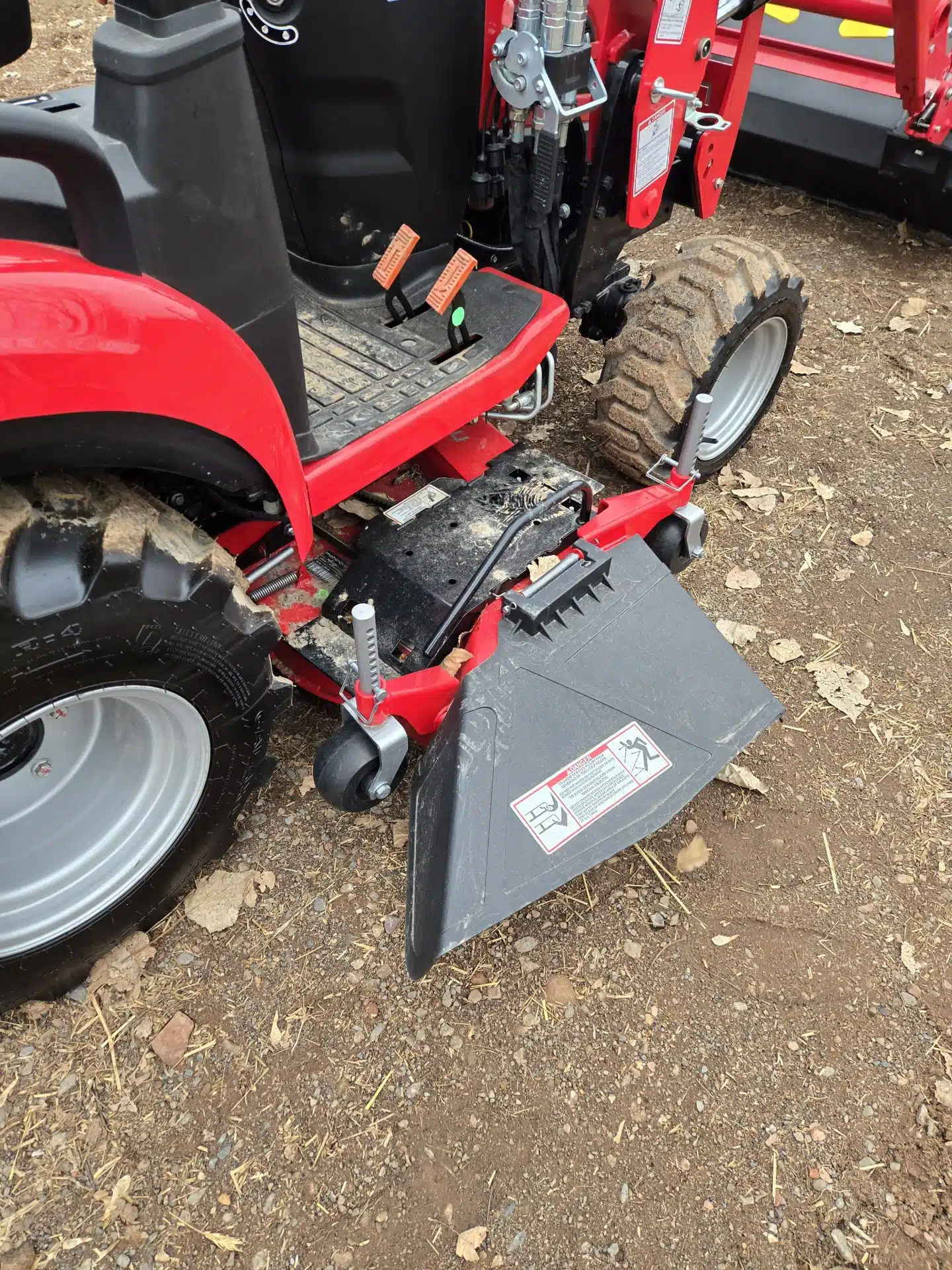

54″ Mower Deck
