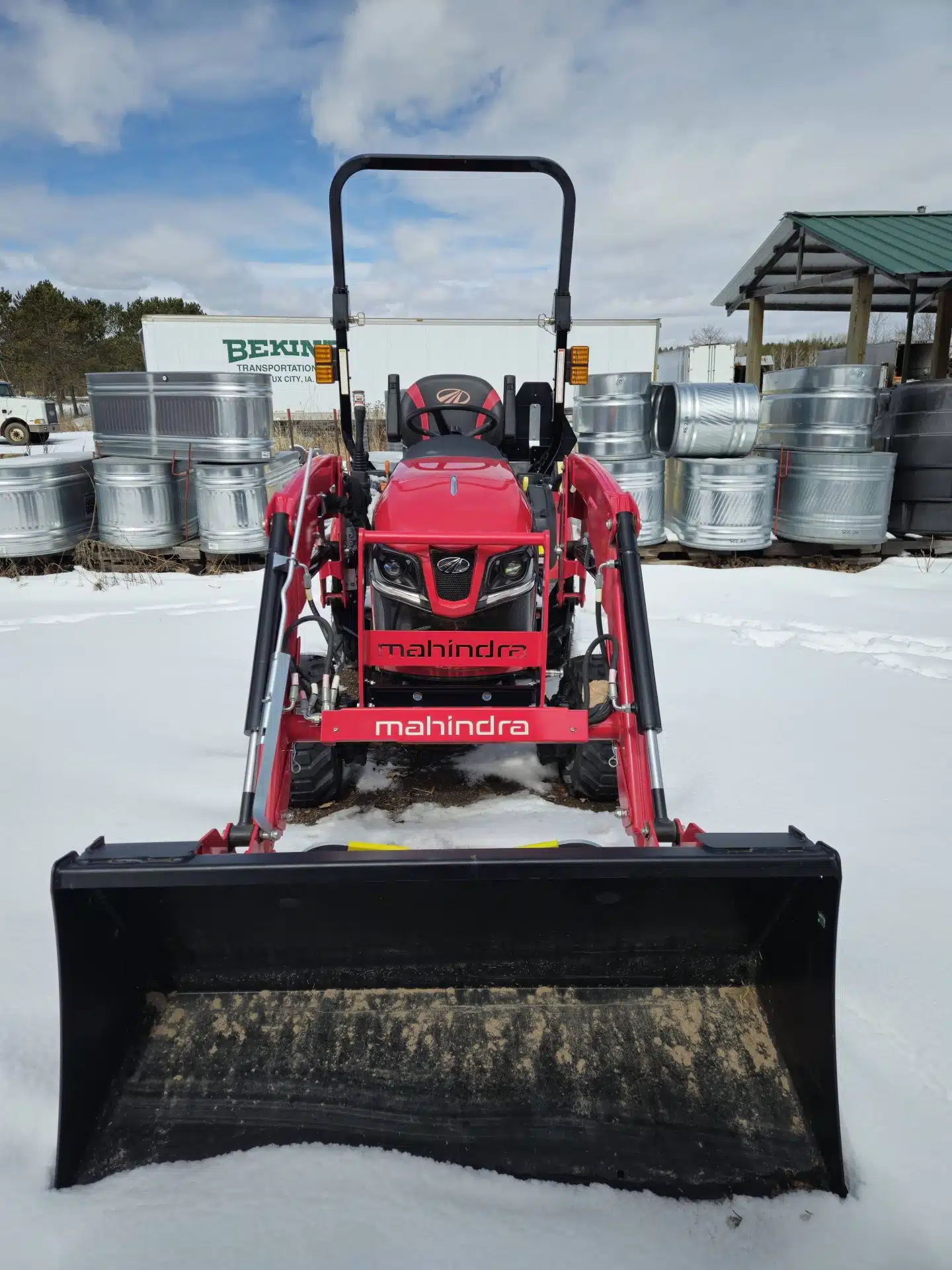

Mahindra 1126 HST w/Loader

The 1100 series is the toughest, friendliest, and smartest tractors in the world. We challenge all weekend warriors to test their mettle. Novices will smile at an intuitive and informative cockpit. Phone app lovers will be pumped by its intelligent OJA software.

Features may include:

EFFORTLESS CONTROLS AT YOUR FINGERTIPS

Electronic PTO engagement for your mid and rear implements is ideal for those with arthritis and is designed to prevent accidental activation, improving operator safety.

UNMATCHED RIDE QUALITY

Try sitting on a tractor all day, and then you’ll see why the 1100 comes with power steering standard and mComfort — the comfiest seat in its class. It offers outstanding support, featuring a superior form-fitting seat cushion and foldable armrests.

BEST-IN-CLASS LOADER TRACTOR

Our hydrostatic drive system (HST) eliminates gear shifting by safely engaging color-coded forward or reverse pedals. Combining HST with a super smooth joystick for loader-control makes fast and

WON’T STOP UNTIL YOU STOP.

Using projector-style headlights for best-in-class output, we offer bright, white lighting for after-dark chores.

Specs
Engine
Tractor Model 1126 HST
Engine type Naturally Aspirated, Indirect Injection, Water Cooled Diesel
Engine HP [kW] @ RPM 25.3 (18.8) @ 3000
Displacement [in3 (cc)] 67.2 (1102)
Number of cylinders 3
Fuel tank [Gal (L)] 6.6 (25)
Bore & stroke [in] Bore : 3, Stroke : 3.2
Cylinders
Drive Train
Tractor Model 1126 HST
Transmission type HST – 2 range
Number of speeds Infinite
Clutch N/A
Max speed (mph) 7.3
Brakes Single pedal
PTO
Tractor Model 1126 HST
PTO type Independent Wet Clutch
Rear PTO RPM 540 @ 2837
Mid PTO RPM 2500 @ 2837
PTO HP (kW) 19.2 (14.3)
Hydraulics
Tractor Model 1126 HST
Type Open center with Position Control
Maximum total flow [GPM (L/min)] 7.6 (28.7)
Total pump output, main (GPM) 7.4
Total pump output, steering (GPM) 3.8
3-Point hitch Cat I
3- Point hitch lift capacity @24″ aft [lb (kg)] 771 (350)
Electrical
Tractor Model 1126 HST
Battery 12.6 V, 650 CCA
Alternator 12V, 55A
DIMENSIONS & WEIGHT
Tractor Model 1126 HST
Overall length [in (mm)] 100.4 (2550)
Wheelbase [in (mm)] 55.1 (1400)
Turning radius [ft (m)] 7.2 (2.2)
Overall width [in (mm)] 46.3 (1177)
Overall height [in (mm)] OS 86.6 (2200) Cab 80.5 (2044)
Minimum ground clearance [in (mm)] 6.7 (169)
Weight [lb (kg)] 1620 (735)
Tires
Tractor Model 1126 HST
IND [Front/Rear] 18×8.5-10 / 26×12-12
TURF [Front/Rear] 16×7.5-10 / 24×12-12
Loader
Tractor Model 1126 HST
Model number L11
Max lift height (in) 73.2
Loader lift capacity [lb (kg)] 794 (360)
Digging depth (in) 3.14
