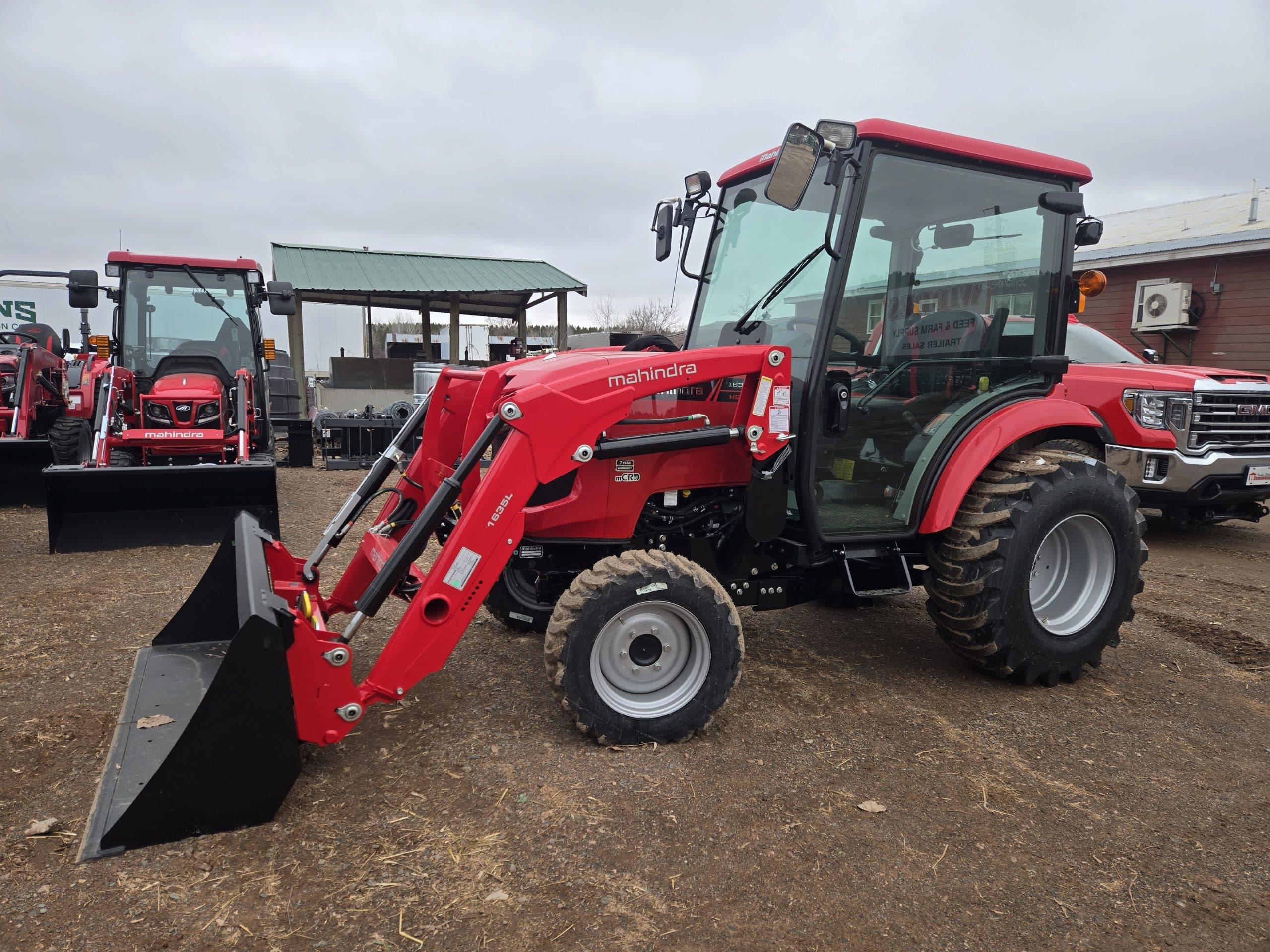

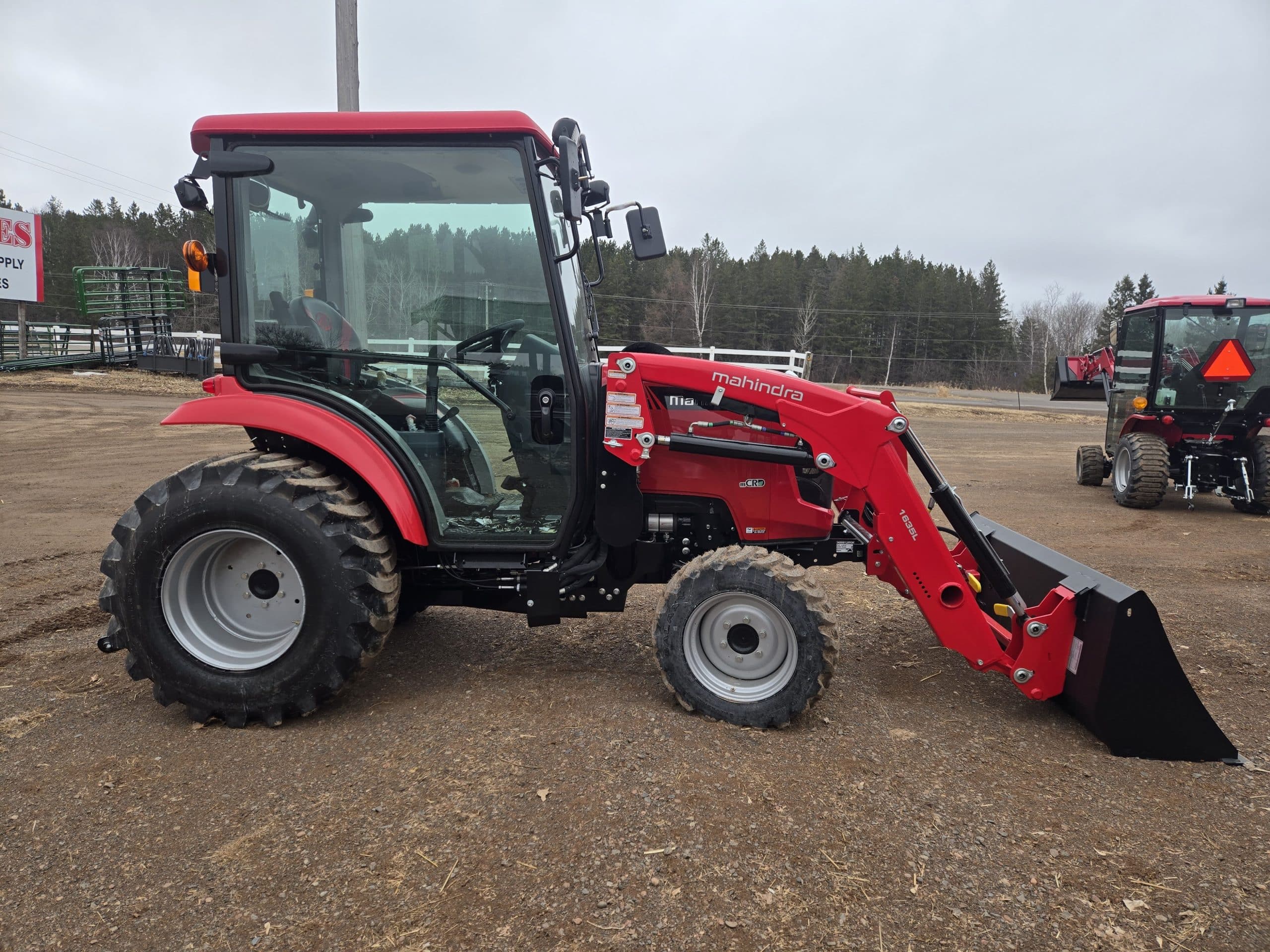

Mahindra 1635 HST Cab w/Loader

NO LIGHTWEIGHT HERE.

Mahindra 1600 compact utility tractors are built to handle grueling jobs around the ranch, hunting property, park, or large estate. They offer a small footprint but powerful diesel engines, competitive lift capacities, and exclusive features like a cab and mid-mower to maximize versatility and comfort.

Features may include:

ADVANCED ENGINE TECHNOLOGY WITH NO DOWNTIME

Mahindra’s mCRD fuel-injected engine ensures high power output at low RPMs, superior PTO horsepower, and reduced fuel consumption. Moreover, it eliminates the need for a DPF (Diesel Particulate Filter), which means no regeneration downtime, fewer parts to replace, quieter operation, no squandered warranty hours, and no wasted fuel.

READY FOR A BLIZZARD

The Mahindra 1600 Series tractor battery delivers up to 925 cold-cranking amps, ensuring the engine starts every time, even in wintry conditions. It’s truly the best battery in the compact utility class! Add a climatized cab and one of many snow removal attachments to tackle any snow-related task easily.

EXCEPTIONAL FRONT LOADER & 3-POINT HITCH

With a loader lift capacity of up to 1650 lbs and greater than 8 ft high, take on almost any loader chore, including stacking two rows of round bales in the barn or loading feed in towering mixer wagons. Safely operate most CAT1 implements thanks to an operating weight of 1.5-2 tons, 19-30 PTO hp, and a PTO lift capacity of 2646 lbs. Its 3-point hitch comes standard with telescoping stabilizers & flex links for fast implement hookups, too.

UNMATCHED RIDE QUALITY

Try sitting on a tractor all day, and then you’ll see why the 1600 comes with power steering standard and mComfort — the comfiest, form-fitting seat in its class. It offers maximum support, featuring a superior form-fitting seat cushion with added air suspension and foldable armrests. Add a climatized cab for year-round comfort.

ENGINE
Engine type – Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
Engine HP [kW] @ RPM – 36.2 (27) @ 2500
Displacement [in3 (cc)] – 125 (2048)
Number of cylinders – 3
Fuel tank [Gal (L)] – 7.7 (29)
Bore & stroke [in] – 3.5 x 4.3

DRIVE TRAIN
Transmission type – HST -3 Ranges
Number of speeds – Infinite
Clutch – Dry-Single
Max speed (mph) – 13.3
Brakes – Wet Disc

PTO
PTO type – Live
Rear PTO RPM – 540 @2376
Mid PTO RPM – 2000 (Opt.) @ 2526
PTO HP (kW) – 26 (19.4)

HYDRAULICS
Type – Open Center
Maximum total flow [GPM (L/min)] – 10.8 (40.7)
Total pump output, main (GPM) – 7.5
Total pump output, steering (GPM) – 3.3
3-Point hitch – CAT I with Telescoping Stabilizers & Flex Links
3- Point hitch lift capacity @24″ aft [lb (kg)] – 2646 (1200)

ELECTRICAL
Battery – 12 V, 925 CCA
Alternator – 12 V, 90 A

DIMENSIONS & WEIGHT
Overall length [in (mm)] – 123.8 (3144)
Wheelbase [in (mm)] – 73 (1854)
Turning radius [ft (m)] – 8.5 (2.6)
Overall width [in (mm)] – 63 (1600)
Overall height [in (mm)] – 88 (2235)
Minimum ground clearance [in (mm)] – 12.2 (310)
Weight [lb (kg)] – 3527 (1600)

TIRES
AG [Front/Rear] – 7 x 16 / 11.2 x 24
IND [Front/Rear] – 28 x 8.5-15 / 43 x 16-20
TURF [Front/Rear] – 25 x 8.5-14 / 13.6 x 16

LOADER
Model number – 1626L
Max lift height (in) – 86
Loader lift capacity [lb (kg)] – 1560 (709)
Digging depth (in) – 4.5
